Description
It is a powder novolak resin modified with a melamine polymer.
The flame-retardant effect of melamine could improve heat resistance and wear resistance.

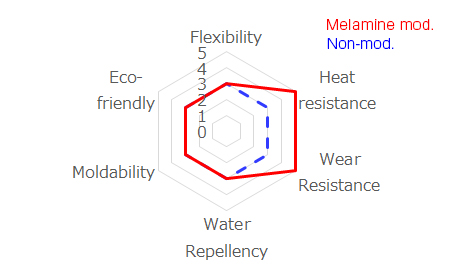

Features
|
✔ Wear resistance ✔ Heat resistance ✔ Crack resistance |
|
Main Grades
| Grade | Features | Flow 125°C, mm |
Gel Time 165°C, sec |
Free Phenol (%) |
|---|---|---|---|---|
| PR-56341 | Wear resistance | 27 | 38 | <1.0 |
- The values in this material are the representative values.
Technical Data

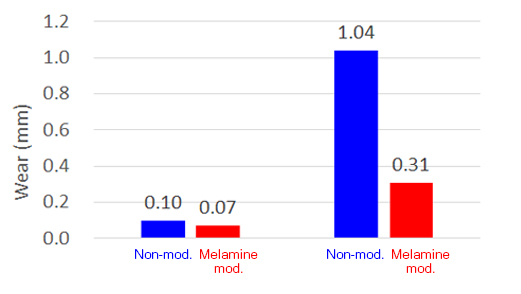

Wear resistance data
・1/10 Scale dynamo
・65km/h, 0.3G, IBT200%degCx200cycle、 300°Cx200cycle、inatia 0.5kgm2
Friction appearance after wear test
|

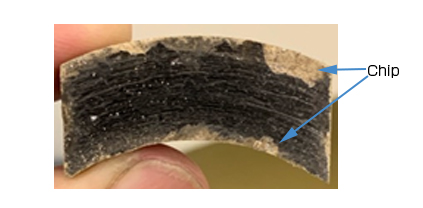

Non-modified resin
|

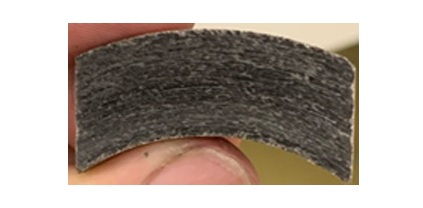

Melamine modified resin
|
Melamine modified compound does not cause chipping and cracking after wear test.
