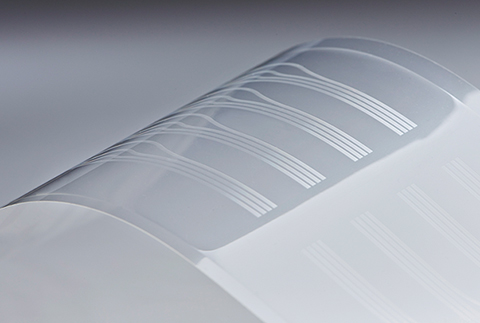

Polymer Waveguide (PWG)
Suitable for optical wiring in narrow space
which is difficult with optical fibers in usage of
optical communication and optical sensing
Advantage
PWG Structure/Transmission performance
- Film thickness: 100 µm
- Flexibility: R=1 mm
- Weight saving (comparison with e-wiring): 1/100
- Propagation loss: 0.05 dB/cm
- Bending loss: <0.2 dB @R=5 mm
- Crosstalk b/w channels: <-40 dB
* The data are representative values, not guaranteed values.
Optical circuits
Core technology

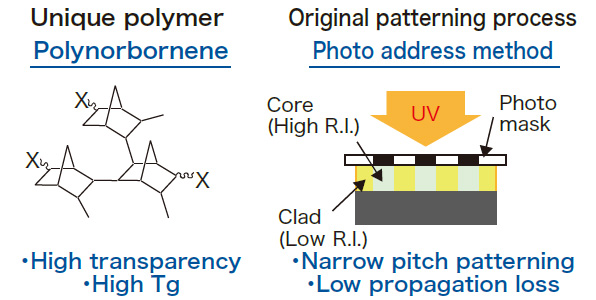

PWG tech.

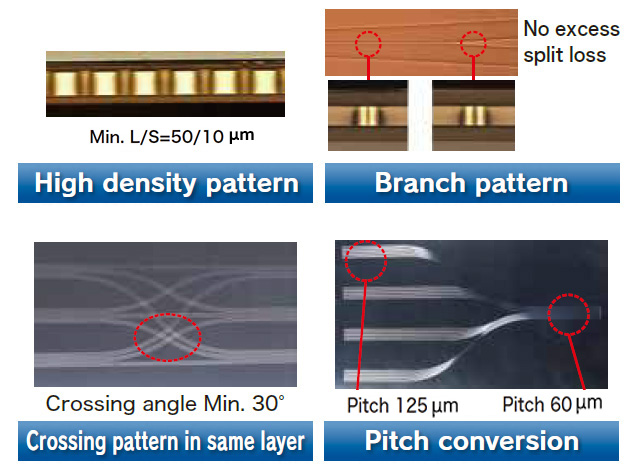

Detailed patterning with high accuracy and good reproducibility

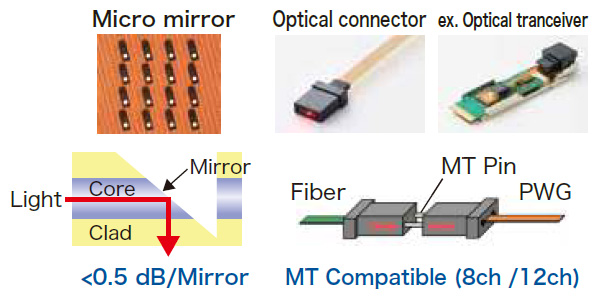

Optical connection tech.
Alignment connection to
optical components
Application example

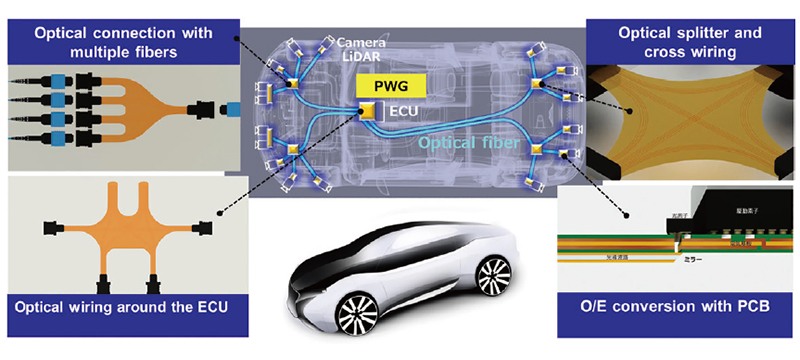

Automobile with self-driving technology
Proposal of optical harness consisting of optical fiber and PWG
4K8K broadcasting
Industrial equipment
