Contract Analysis & Testing Service
Example
Dielectric properties measurement at millimeter wave range
Even at high and low temperatures dielectric properties can be measured.
| Method | Frequency | Temperature | Sample type | Direction of electric field |
|---|---|---|---|---|
| Circular disk resonator | 50GHz～90GHz | -30℃～125℃ | Film (0.2mmt～0.4mmt) | Vertical to sample surface |
| Cutoff waveguide | 75GHz～90GHz | -30℃～125℃ | Thin Film (10μmt～0.2mmt) | Parallel to sample surface |
| Cavity resonator | 1GHz～40GHz | -40℃～125℃ | Film, Thin Plate | Parallel to sample surface |
| Fabry-Perot resonator | 30GHz～75GHz | Room temperature | Plate, Block | Parallel to sample surface |
Measurement of transmission characteristics at high frequencies
Up to 110GHz transmission loss can be measured.
Measurement range
| Frequency | 100M~110GHz |
| Sample size | ~Φ150mm |
| Transmission line | Microstrip line, Coplanar line etc. |

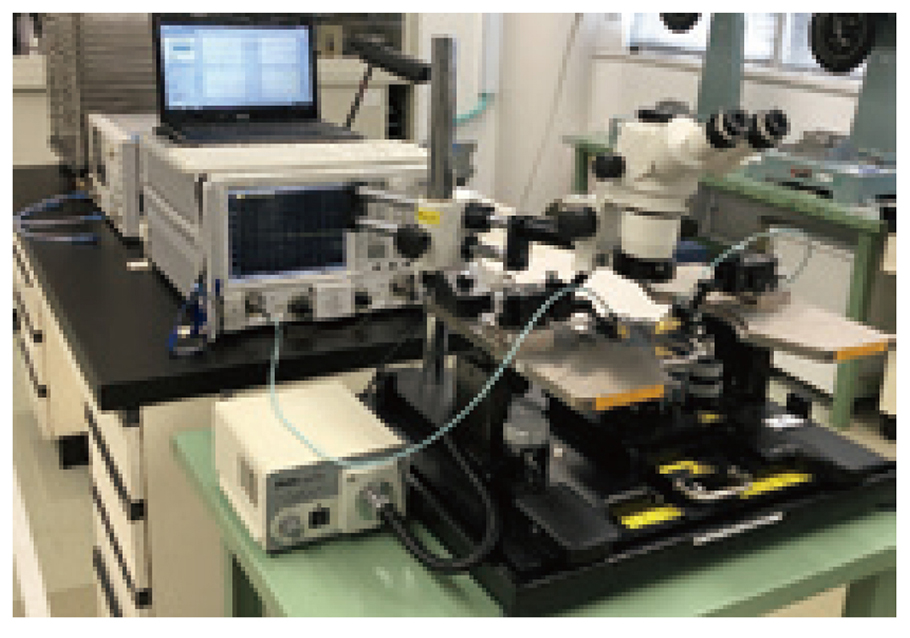

Measurement equipment

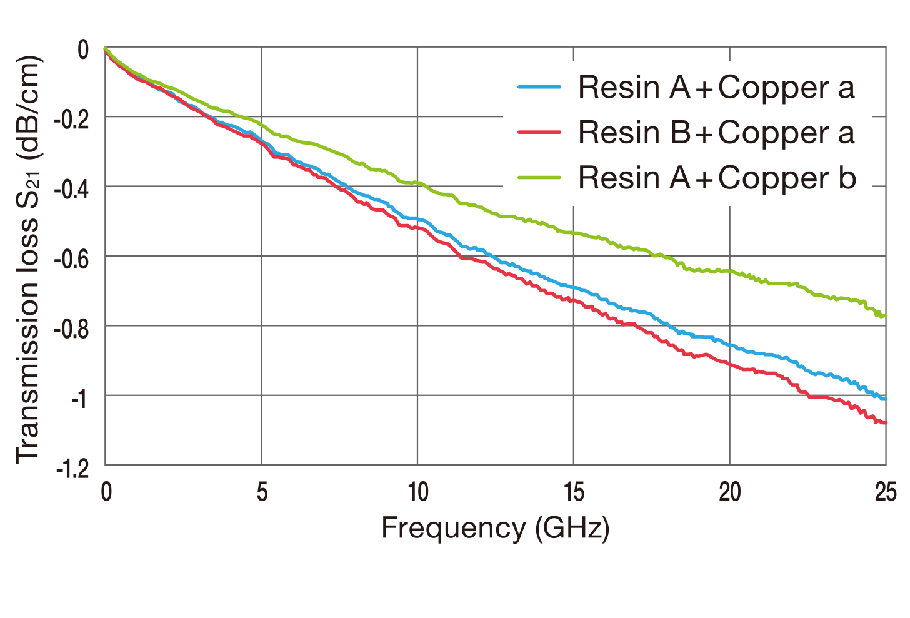

Actual cases of transmission loss

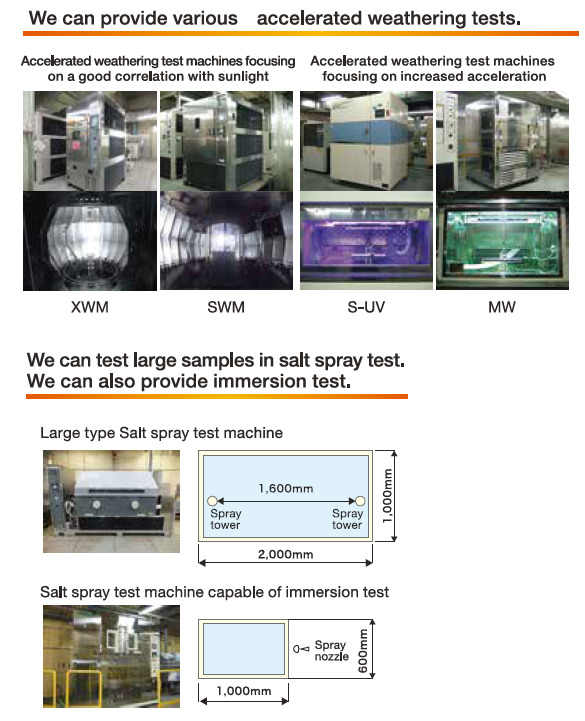

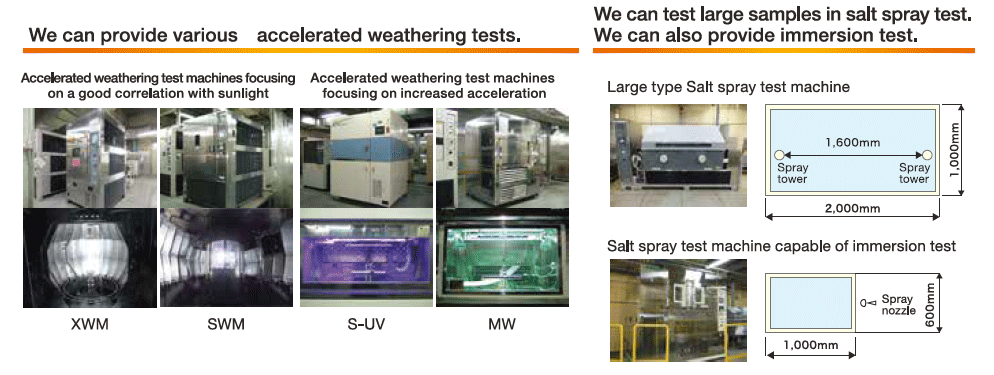

Weathering test and salt spray test
We have acquired ISO/IEC 17025 in Xenon weather meter test, salt spray test
and provide reliable test results.
