Photosensitive Dielectric Materials
for Mini/Micro LED Display (Under Development)
Advantage
CRX-7000 series
* Under development

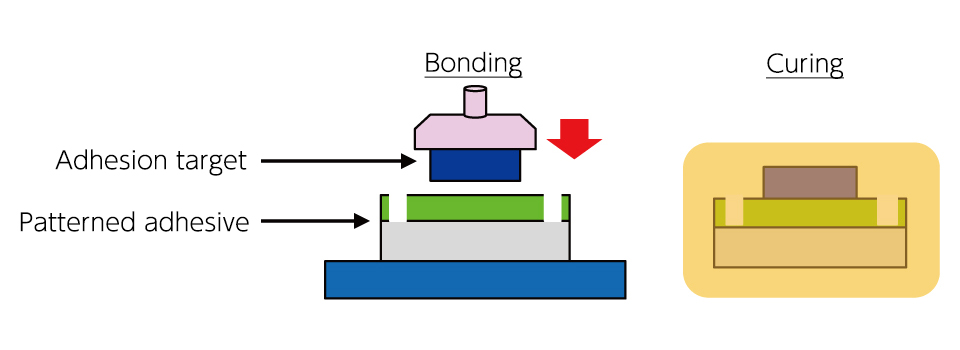

Can be adhered to various materials after patterning (ex. Si, Polyimide, etc.)
CRX-3000 series
Excellent adhesion to Cu which is typical wiring material
No delamination after 125℃/100%/100hrs * JIS D0202
CRX-4000 series

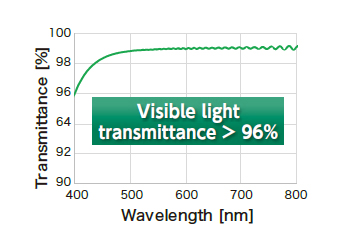

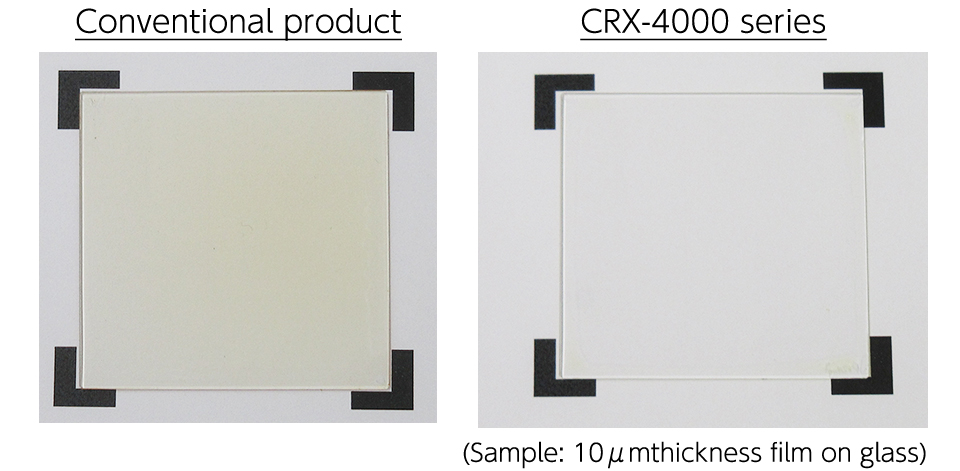

High transparency can be maintained after 500 hours of blue LED light exposure.
The values shown above are typical values, not guaranteed values.
Core technology

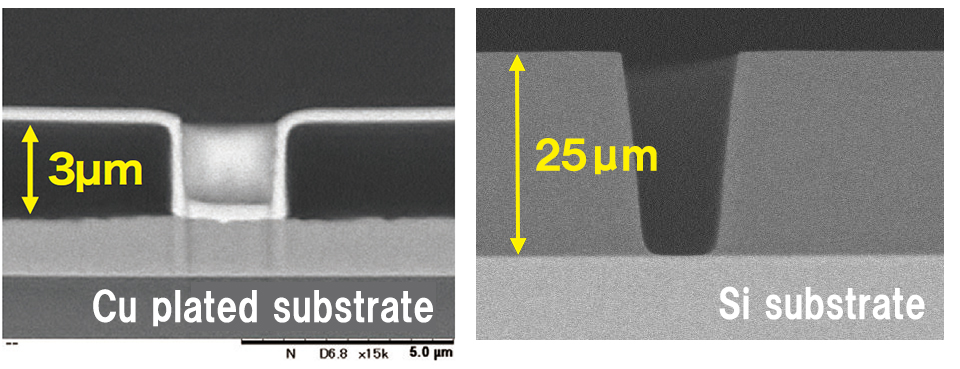

Excellent litho. performance
Available substrate : Cu, Si, glass, etc.
Available thickness: 3～25μm
⇒ High levels of freedom
in forming structure

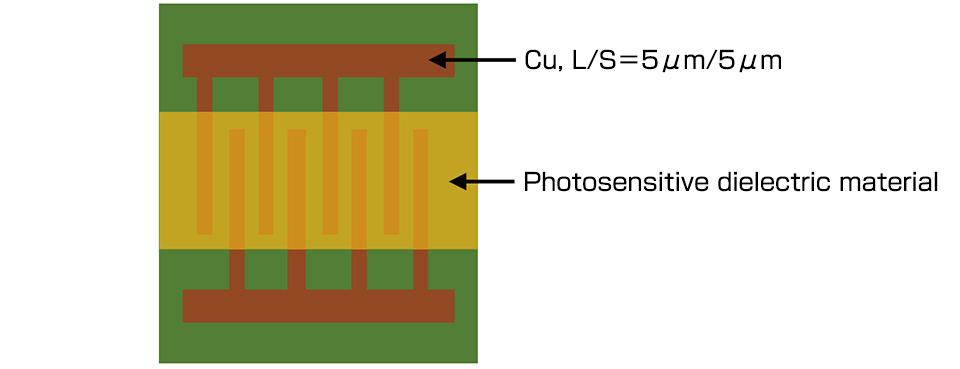

Excellent insulation reliability
High insulation can be maintained
after 130℃/85%/3.5V/200hrs.
Extensive lineup
- Handling positive tone and negative tone
- Viscosity can be optimized upon request.
- Both spin coating and slit coating are available.

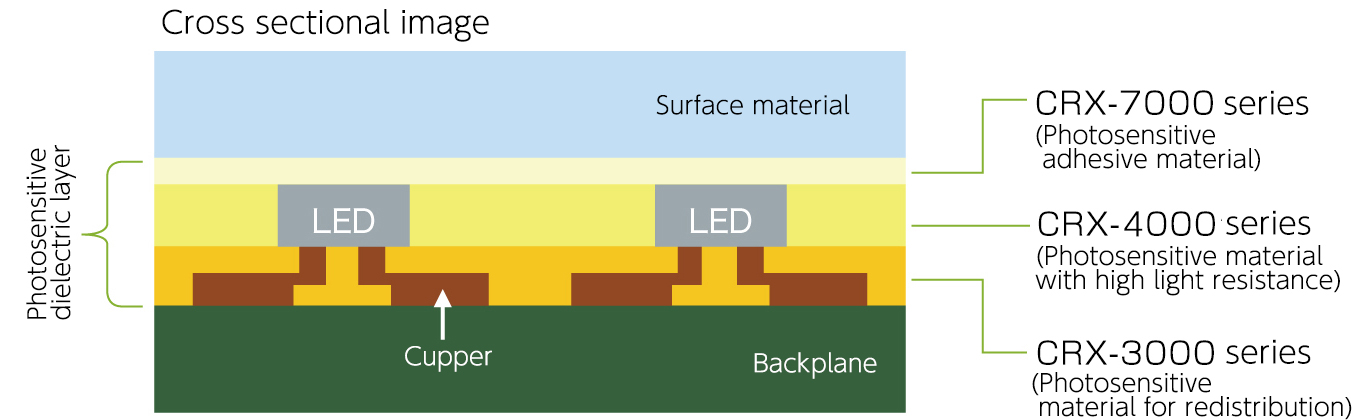

Application examples
