Special Transfer Molding Compound
for Electric Vehicle Motor(IPM) Magnet Fixing

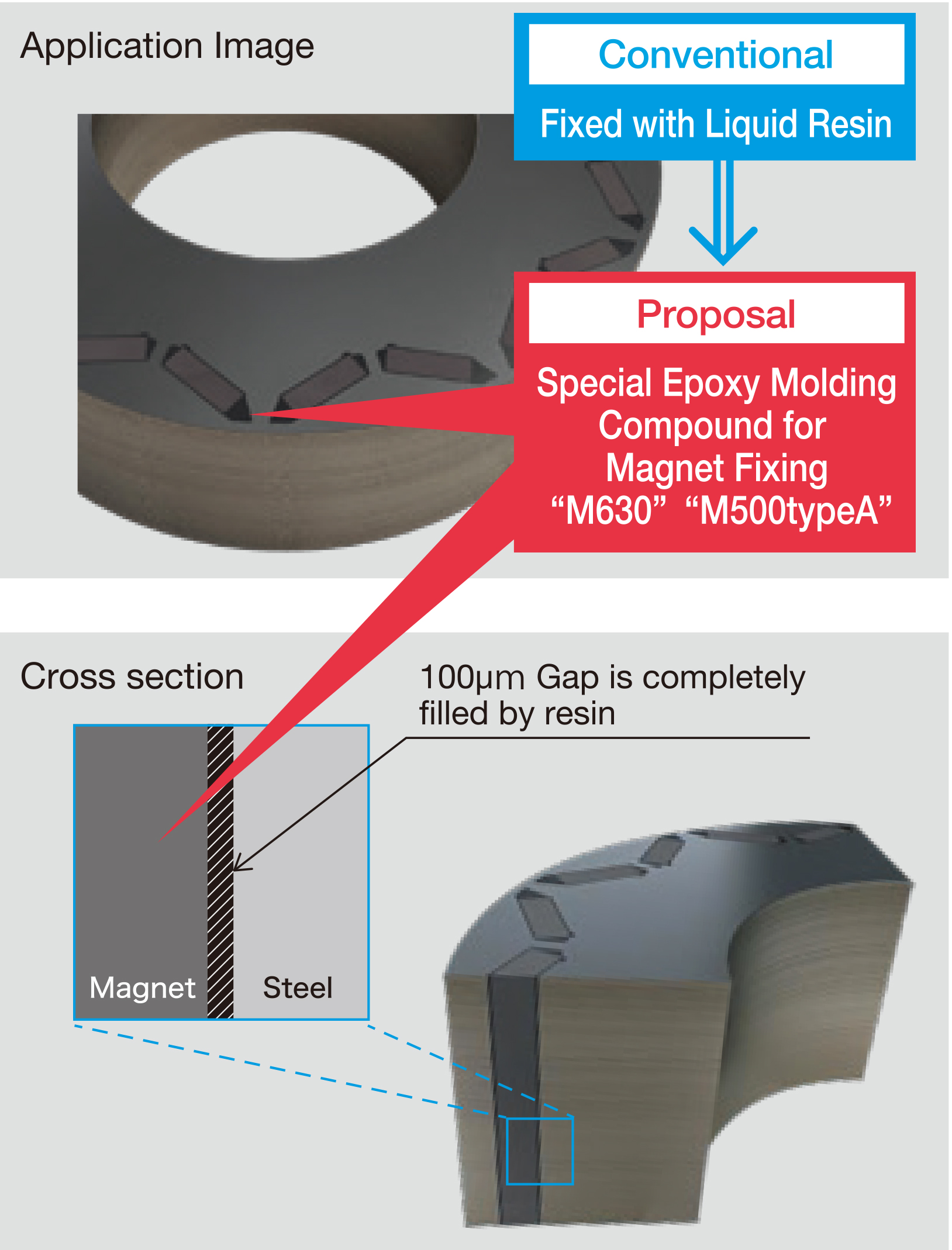

As a magnet fixing material for IPM motors, it achieves high heat resistance, high mechanical strength and high productivity.
It is possible to fill even narrow gaps of 100 um level, contributing to higher performance of IPM motors.

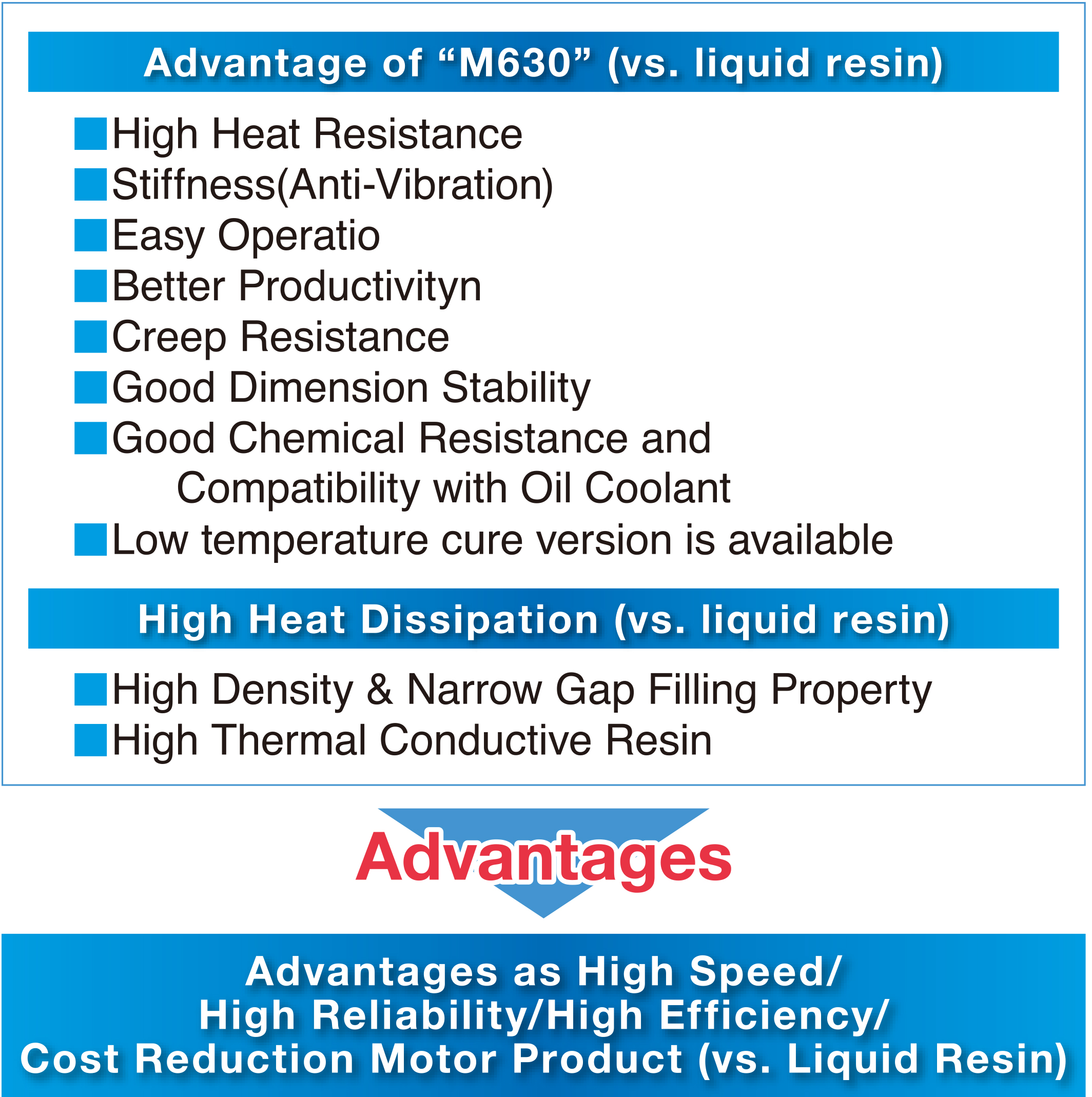

Advantage

Higher reliability of Special molding compound for Magnet fixing is backed by many customer use result

Core technology

Narrow Gap Filling Property and Good Chemical Resistance by Epoxy Molding Technology

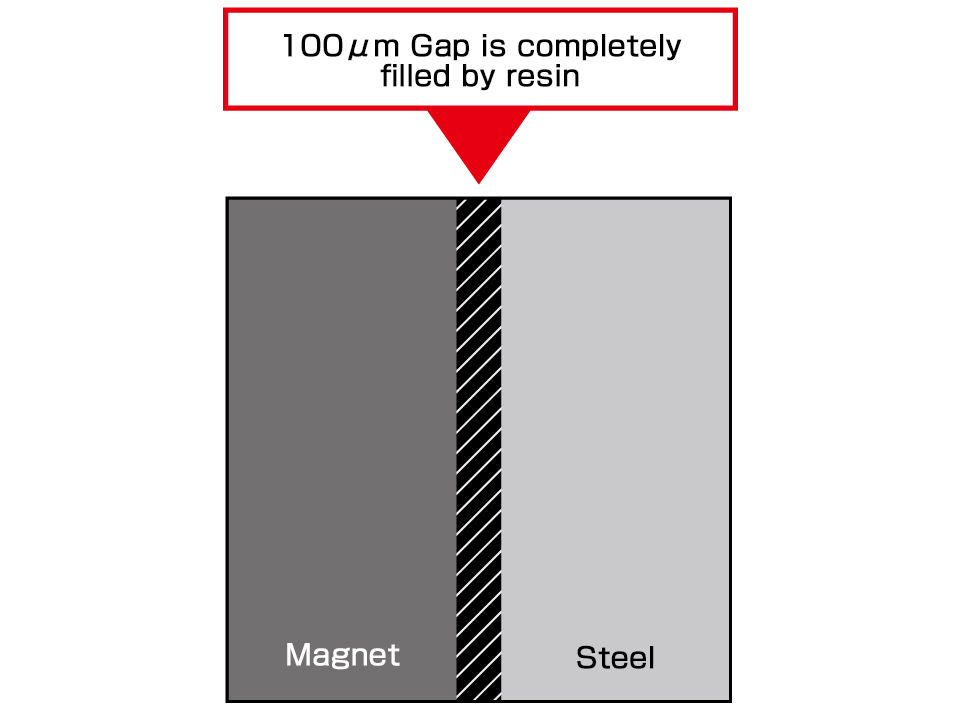

Narrow Gap Filling property

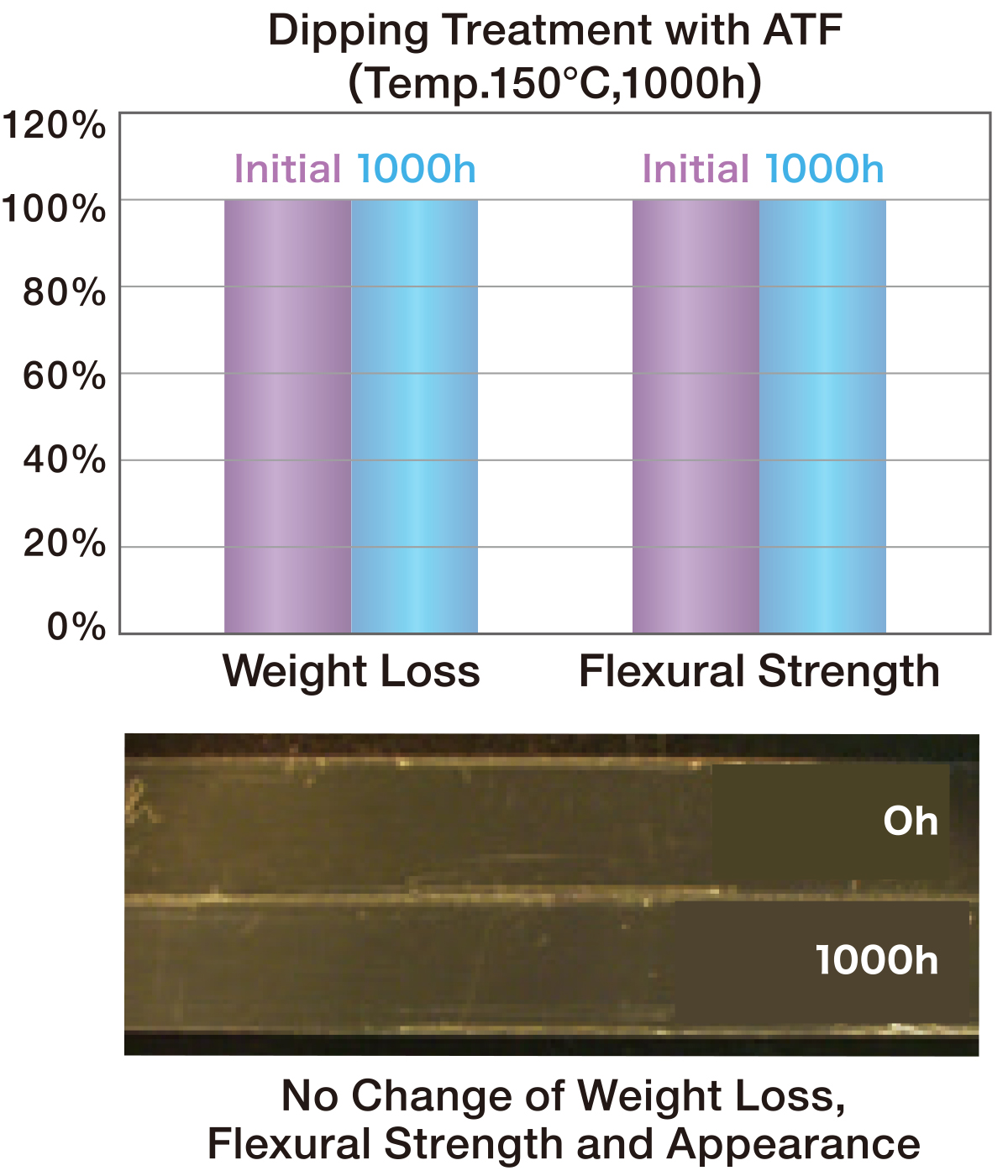

Good Chemical Resistance

Application examples

Expanding lineup to further improve motor performance and handleability

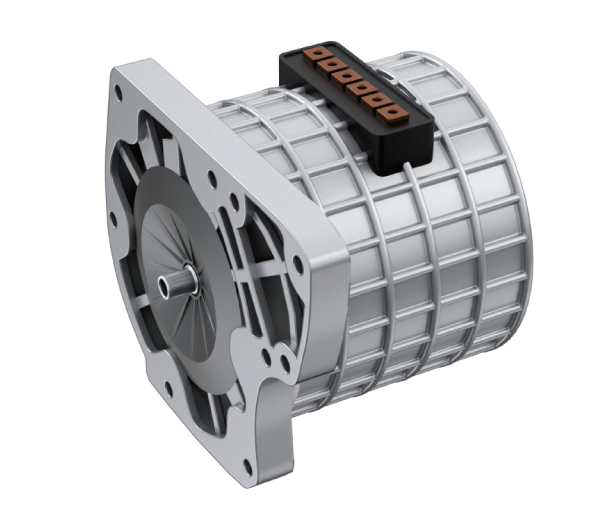

Auxiliary motor and main motor of EV

  • High thermal conductive EMC
  • Room temperature storage EMC
  • Low temperature cure EMC is under development
  • Proposing materials and molding methods suitable for large volume molding (up to 500cc)
