Screw Injection moldable - Long fiber reinforced thermoset plastic molding compound

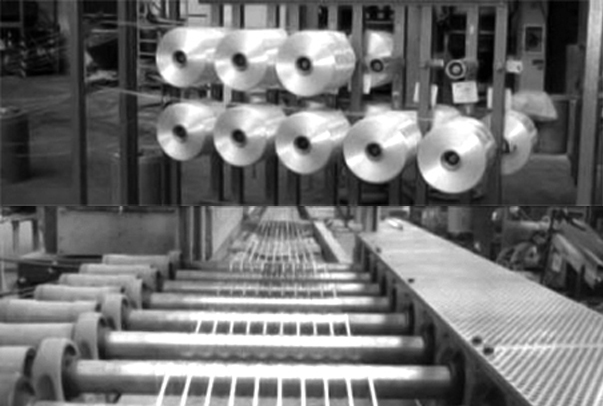

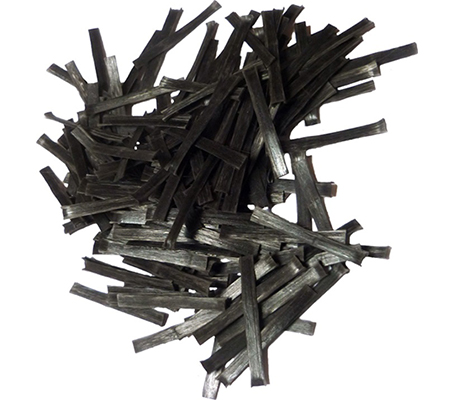

Long fiber compound produced using continuous fiber rovings

Advantage

イメージ
Phenolic long glass fiber compound
  • High strength
  • High modulus & Impact strength


DAP long glass fiber compound
  • CTI 600V, High strength
  • High modulus & Impact strength
Thermoset plastic Thermoplastic Aluminum
die cast
ADC12
Phenolic
LF
GF8210		 DAP
LF
Developing		 PA66
SF
GF45		 PPS
SF
GF40
Specific gravity [-] 1.8 1.9 1.5 1.7 2.7
Charpy impact st. (Notched) [kJ/m2] 21 13 13 9 -
Flexural st. [MPa] 25℃ 260 175 295 225 350*
120℃ 210 125 165 140 -
Flexural mo. [GPa] 25℃ 19 17 13 14 65
120℃ 16 13 6 7 -

* *D.2% yield

Long fiber compounding technology

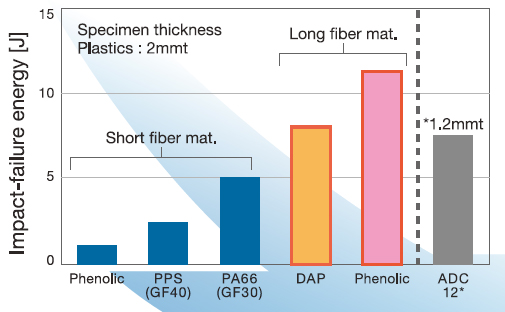

Compatible impact strength to aluminum die cast

Phenolic (LF)

PPS GF40

PPS GF40

ADC12

ADC12

* based on JIS K7211-2 Plastics - Determination of puncture impact behaviour of rigid plastics

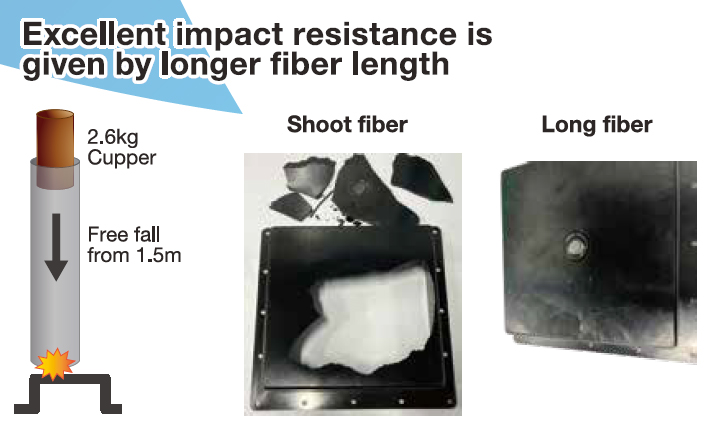

Excellent impact resistance is given by longer fiber length
Metal parts replacement with the toughened plastic material

Application examples

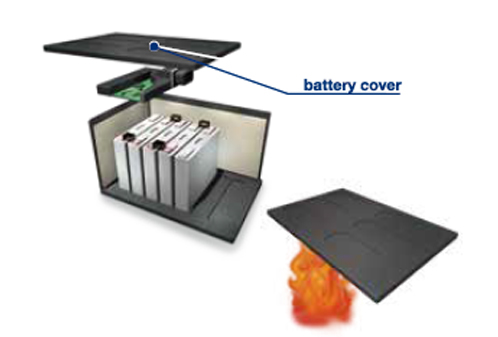

・Big electric component housing

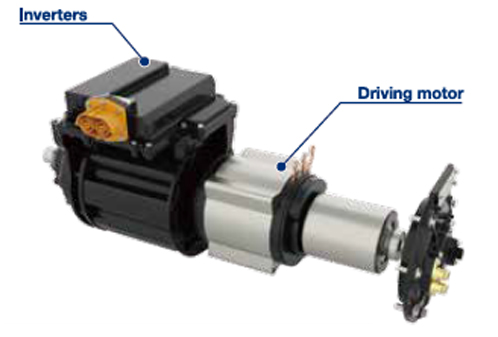

・Structural member
