• Can be Achieved Excellent and Reliable Adhesion Strength
• Composite structures with metal on the outside can be molded in the die
• Can Reduce Number of Parts and Process Costs

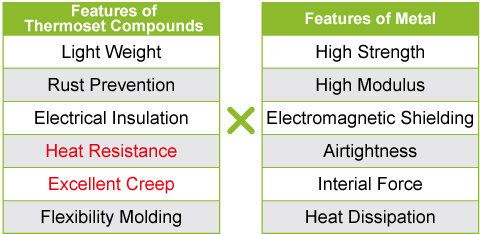

• A lot of Flexibility in the Design and Function of Parts by Variety of Materials

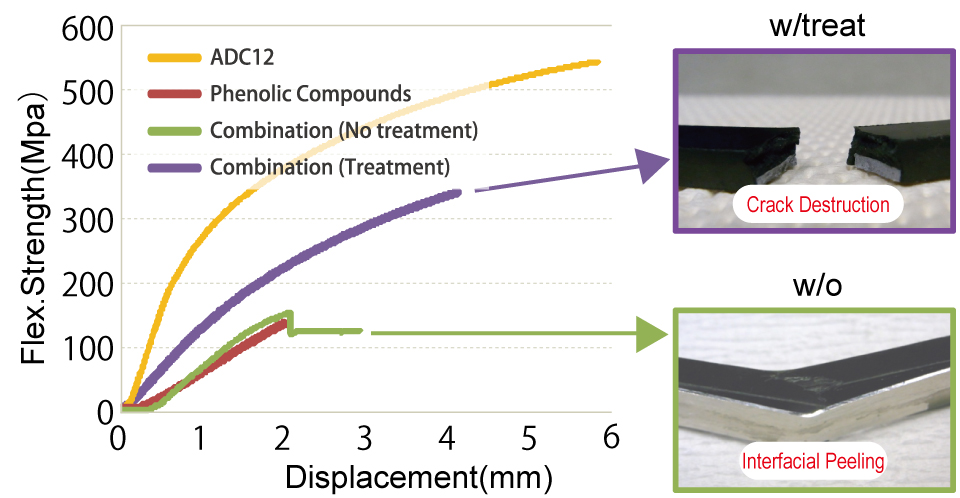

Stress strain curve

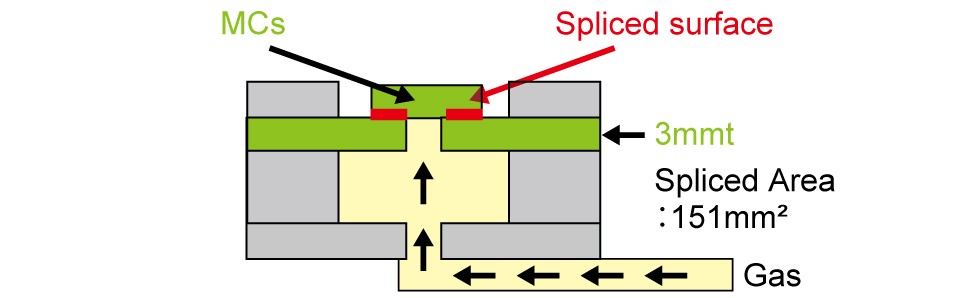

Leak Property

Provides excellent airtightness after the thermal cycle

Metal：Aluminum A5052（Etching：Laser/Chemical）
Method：JIS Z 2331
Condition：TC（-40℃↔︎150℃、Each 30min）~2000cyc

Condition	Medium	Pressure	Result
			Laser	Chemical
Initial	Air	1MPa	No Leakage	No Leakage
	Oil	7MPa	No Leakage	No Leakage
After TC ~2000 cyc	Air	1MPa	No Leakage	No Leakage
	Oil	7MPa	No Leakage	No Leakage

※Measuring limit : 1MPa/Air 7MPa/Oil
