Plating Thermoset Composite Integration Technology (PM-Plamec series)
(Under Development)

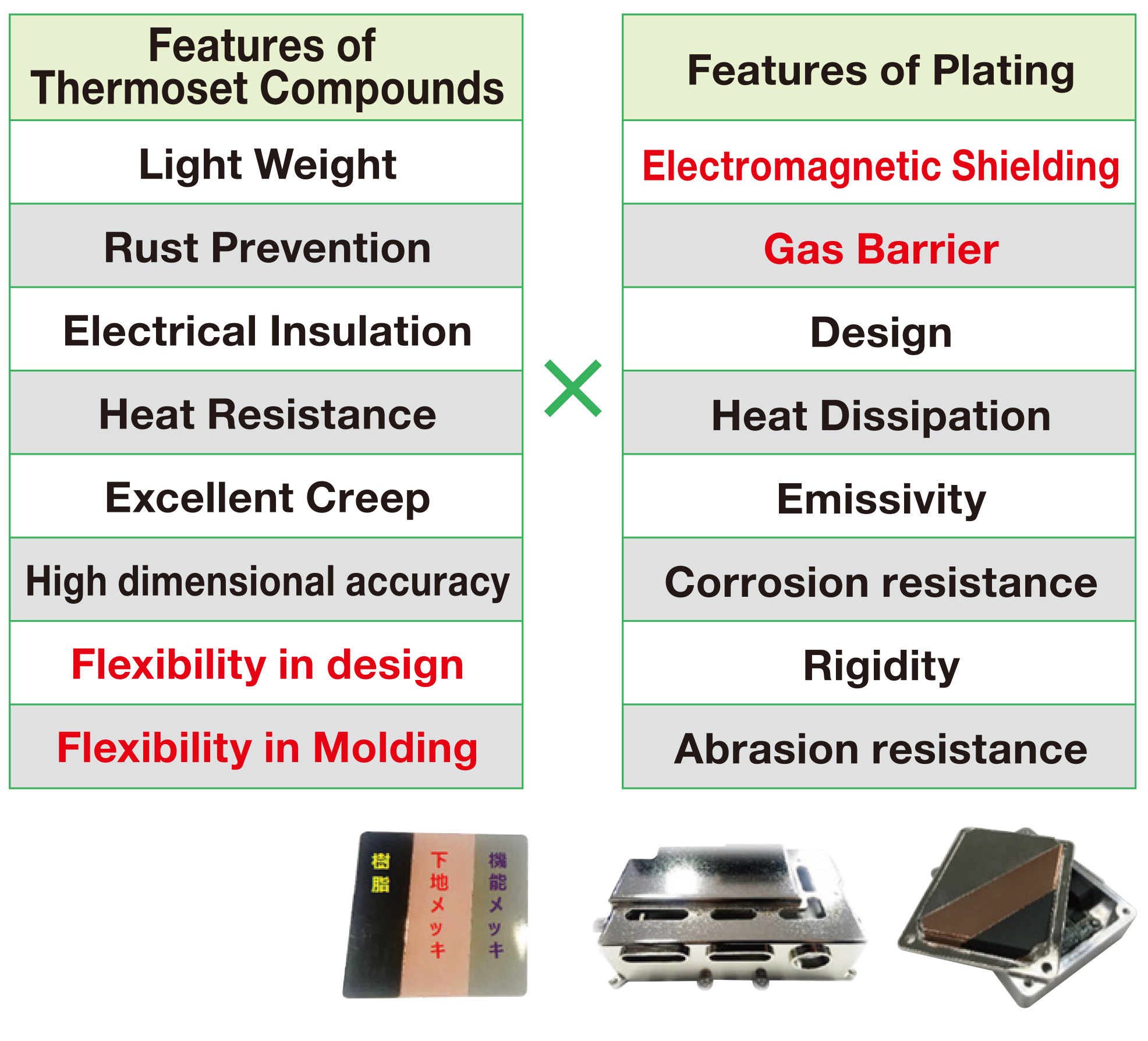

Reliable Thermoset-resin for Plating contributes to the Conversion of Electrification/Electronic Components to Resin.

Advantage

  • High reliability for resin plating
  • Possible to provide characteristics such as electromagnetic wave shielding properties and gas barrier properties

Two materials (Patent pending)

Item Unit PM-5945 Isotropic PM-5940
High strength
Flexural Strength MPa 180 200
Average CTE ppm 23 20
Isotropic ー 1.2 2.1
Peel Strength N/cm 6.3 5.4

Cross section

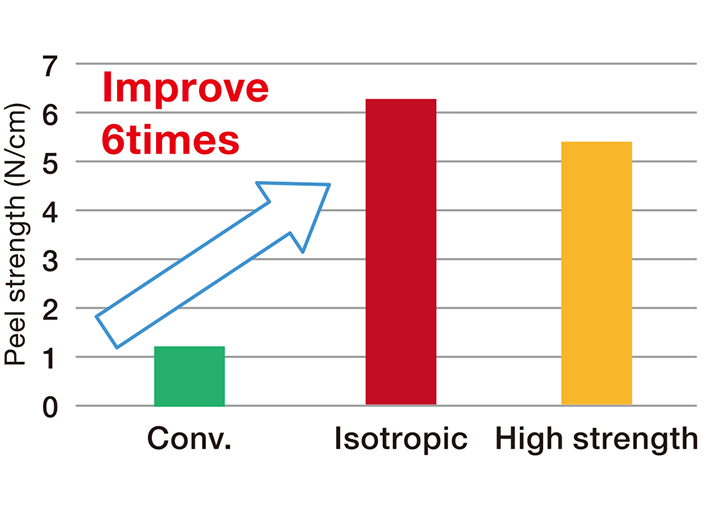

Peel strength

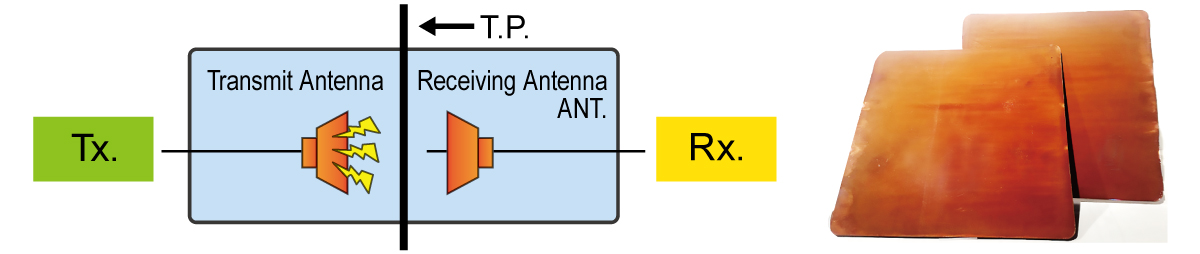

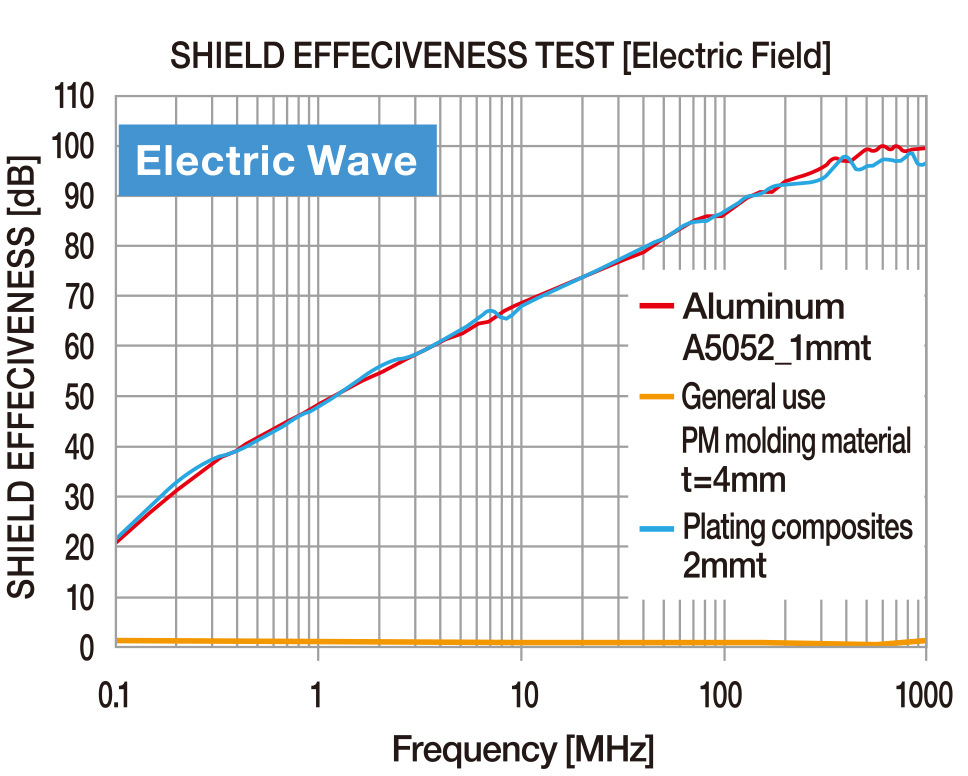

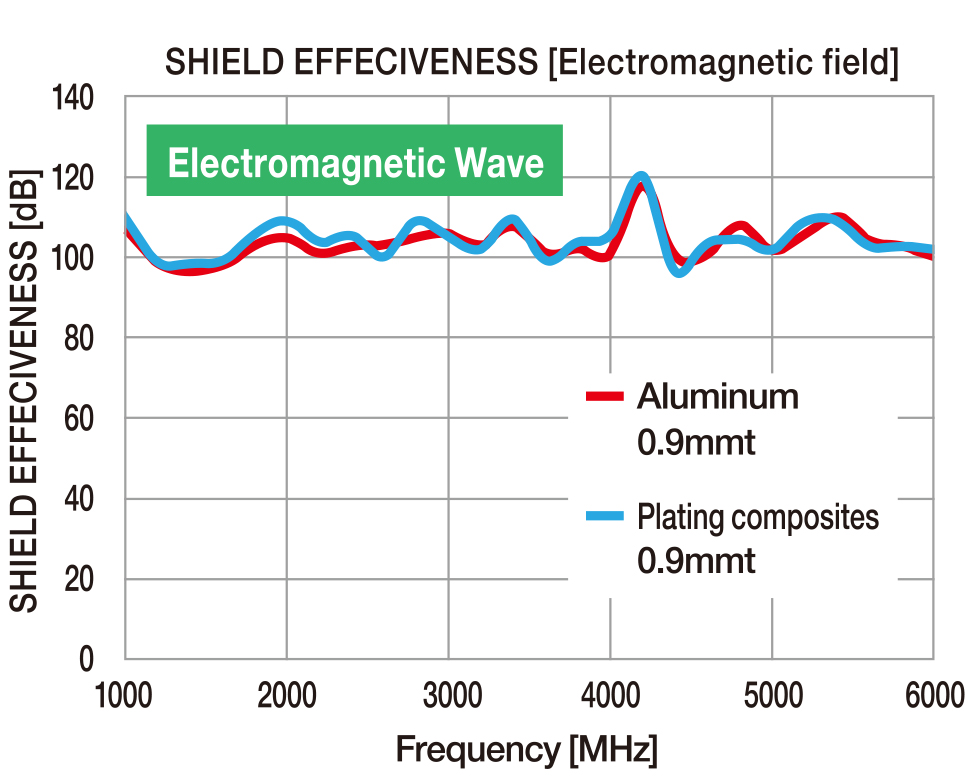

Electromagnetic shielding

Material：specialized for plating
Method：KEC／GHz KEC

Frequency： 100kHz～1GHz（KEC.）
1GHz～6GHz（GHz KEC.）

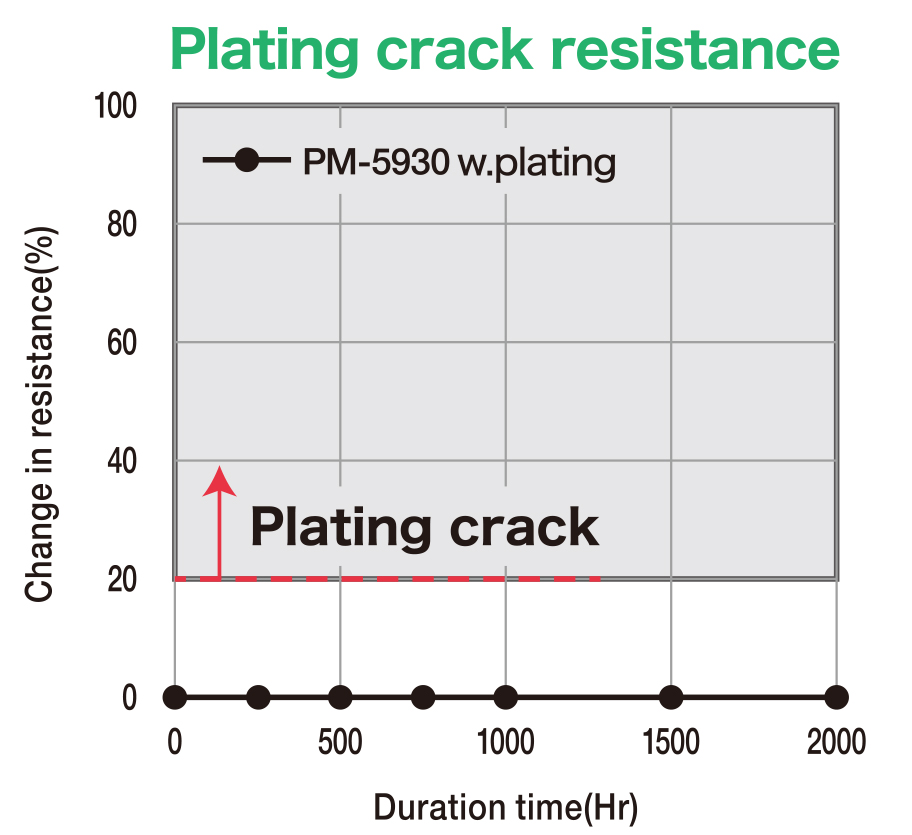

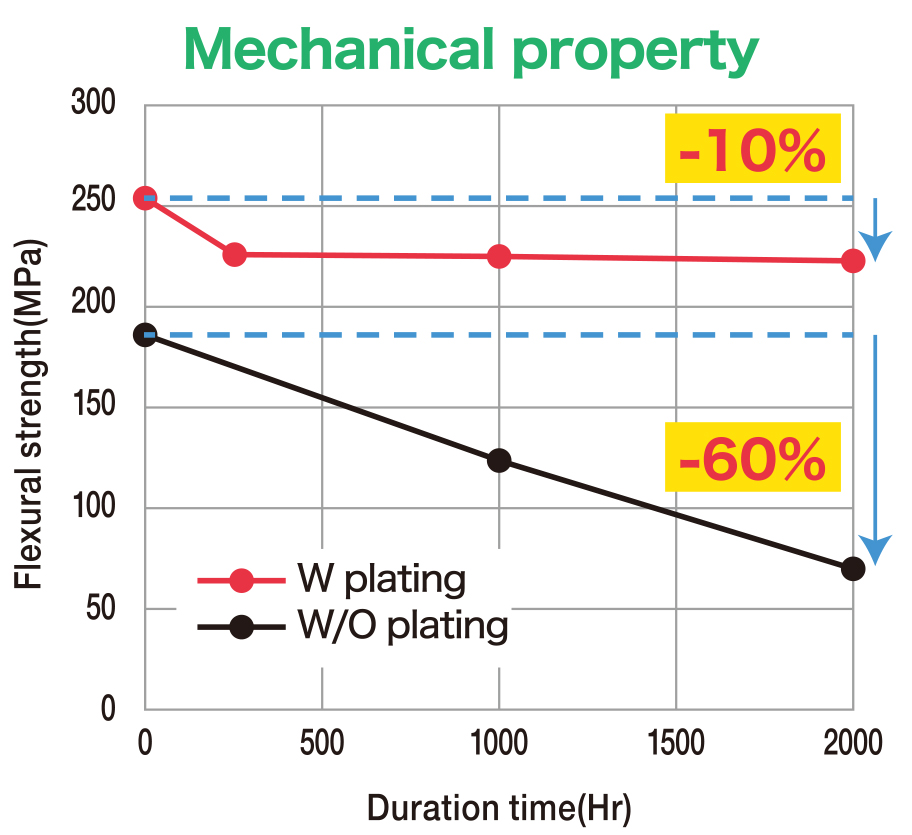

Long term reliability/Heat ageing test
By the plating that the oxidation is prohibited.
Test method： JISK6271,JISH8504
Material ： PM-5930
Aging Temp.： 220degC
Plating ： Electroless Ni/Electrolytic Cu & Ni (double side)
Thickness： 35um(double side total)
