Line of high dimensional accuracy
Phenolic molding compound SiON®

We continue challenge for realization of "Non-machining process" which has been hoped for long time.

Advantage

  • Excellent dimensional accuracy in continuous molding process
  • Low dimensional change in environment for use
  • Low CTE
  • Low anisotropy
  • Collarless is possible by high creep resistant​

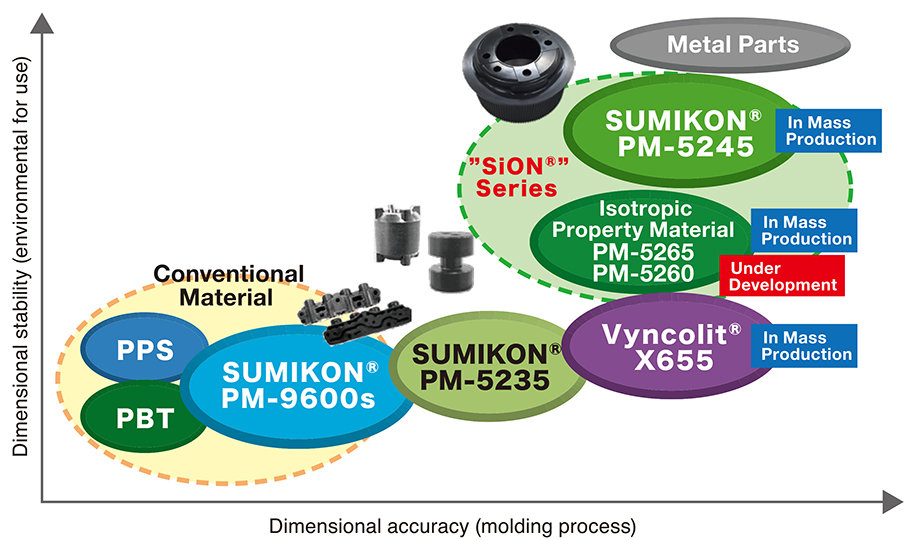

Core technology

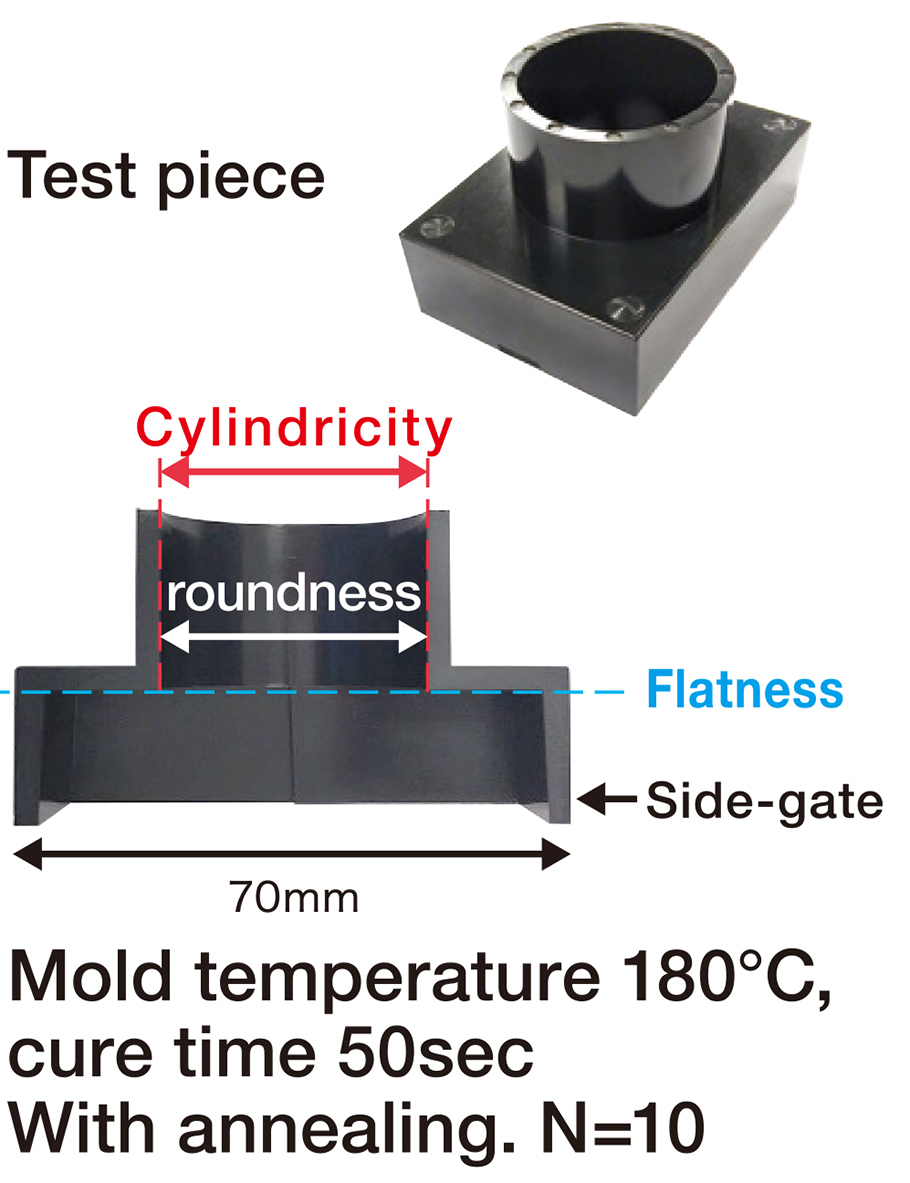

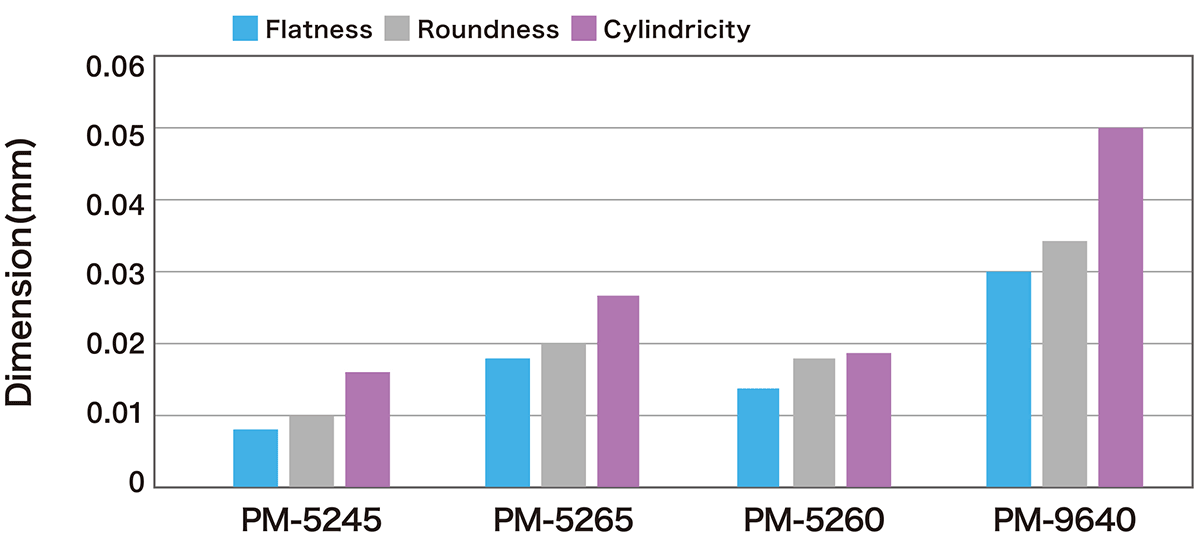

Diemension Accuracy
Grade PM-5245 PM-5265
(Development material)		 PM-9640
Characteristic Dimensional stability High dimensional accuracy
Low specific gravity		 GF reinforced
Specific gravity － 2.03 1.90 1.78
Molding Shrinkage % 0.24 0.30 0.28
CTE (MD/TD) ppm/K 13/14 16/18 14/30
Flexural strength MPa 180 180 225
Flexural modulus GPa 23 18 16
Tensile strength MPa 110 110 140
Compressive strength MPa 360 340 320
Charpy Impact strength kJ/m2 3.0 3.0 5.2

Application examples

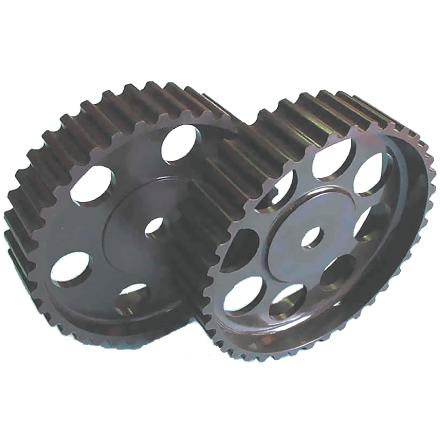

Timing pulley

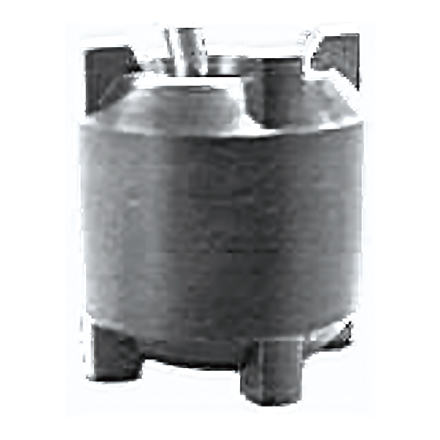

Master cylinder
piston

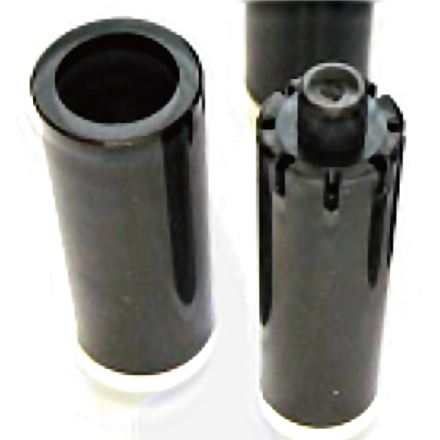

Sleeve

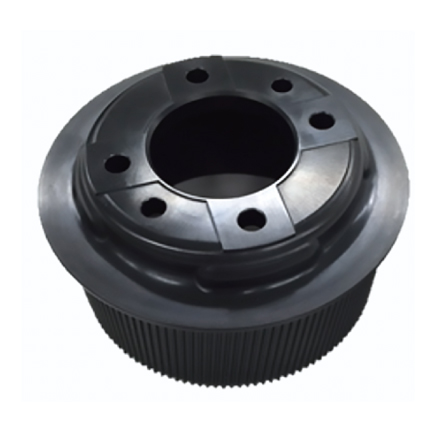

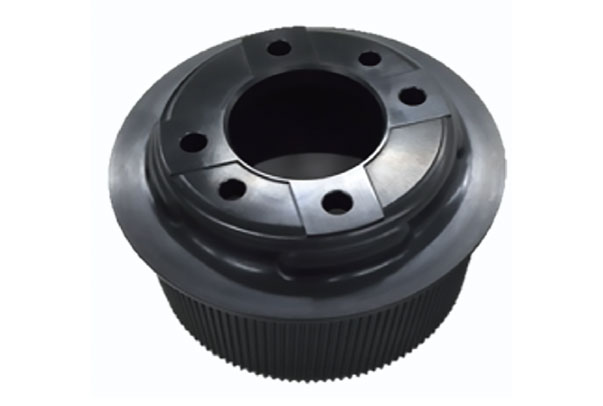

EPS pulley
